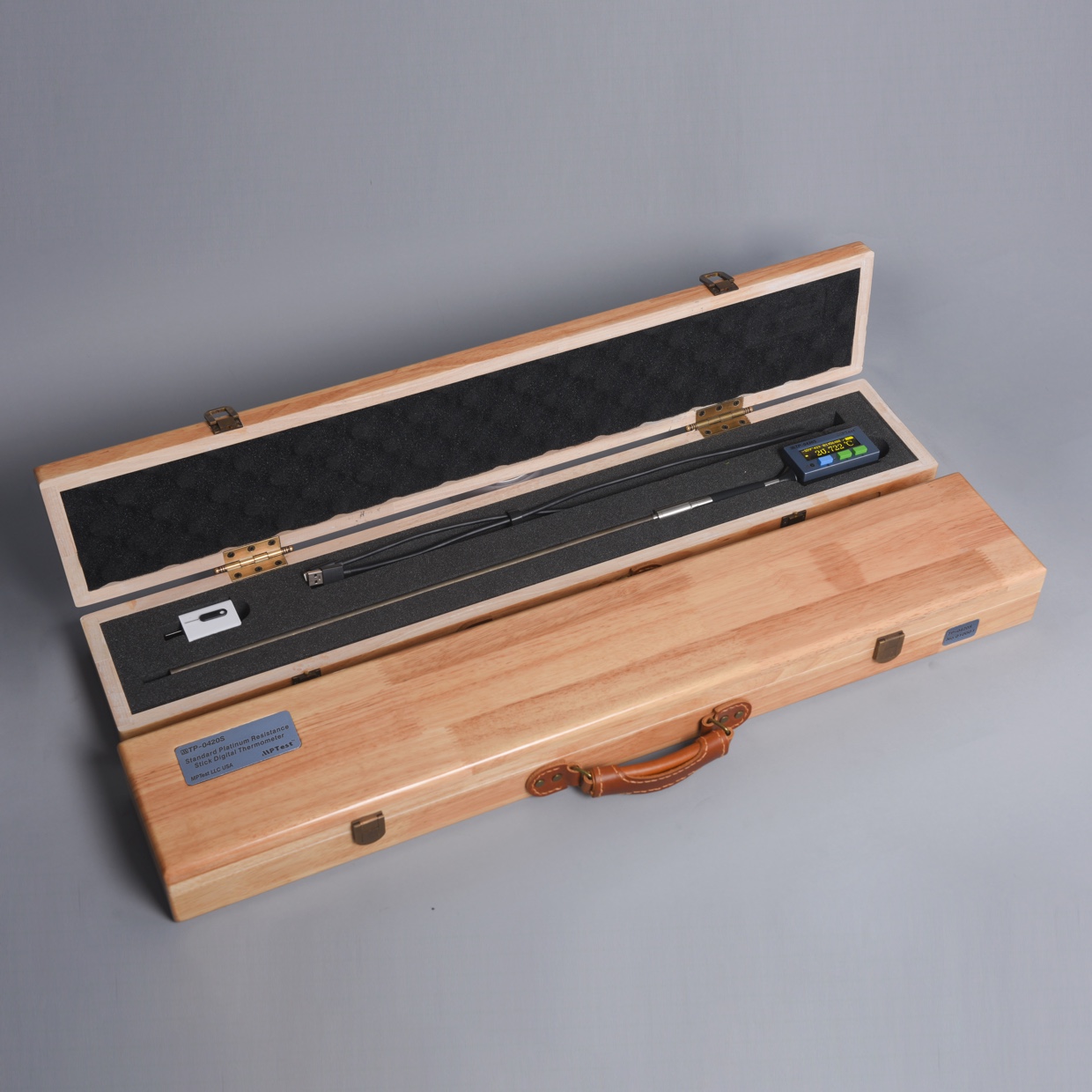

Standard Platinum Resistance Stick Digital Thermometer
The TP-0420S is a rod-type standard platinum resistance thermometer developed by MPTest in compliance with the ITS-90 standard, featuring a digital direct-reading display. As a temperature standard, it is traceable to ITS-90 fixed points. It is divided into temperature zones per ITS-90, with a common range of -189℃ (-308.2°F) to 419℃ (786.2°F), available in long-stem and short-stem versions, with an accuracy of ±0.025℃ (±0.045°F)/year. Error adjustment functions for standard thermometers are password-protected. It includes a rechargeable battery with USB Type-C charging and data transfer interface. The adjustable omnidirectional viewing angle enhances readability. It offers large-capacity data storage and direct Excel export functionality.
Features
Specifications
- Complies with ITS-90 standards for platinum resistance thermometers
- Password-protected calibration adjustment
- ITS-90 fixed-point-based calibration
- Temperature curve display and switchable °C/°F units
- Multi-angle adjustable reading with a flexible connection
- High and low-temperature alarm alerts
- OLED display with bright and clear visuals
- USB Type-C data transmission and charging
- Built-in file system and large-capacity data storage, capable of exporting directly to Excel
Applicable Fields
Warranty
A test report from the National Institute of Standards and Technology (NIST) is available for a fee. A 24-month manufacturer warranty is provided. If accuracy deviations exceed the standard during the warranty period, the manufacturer will recalibrate and provide a test report.
