Mini Bath With High Stability

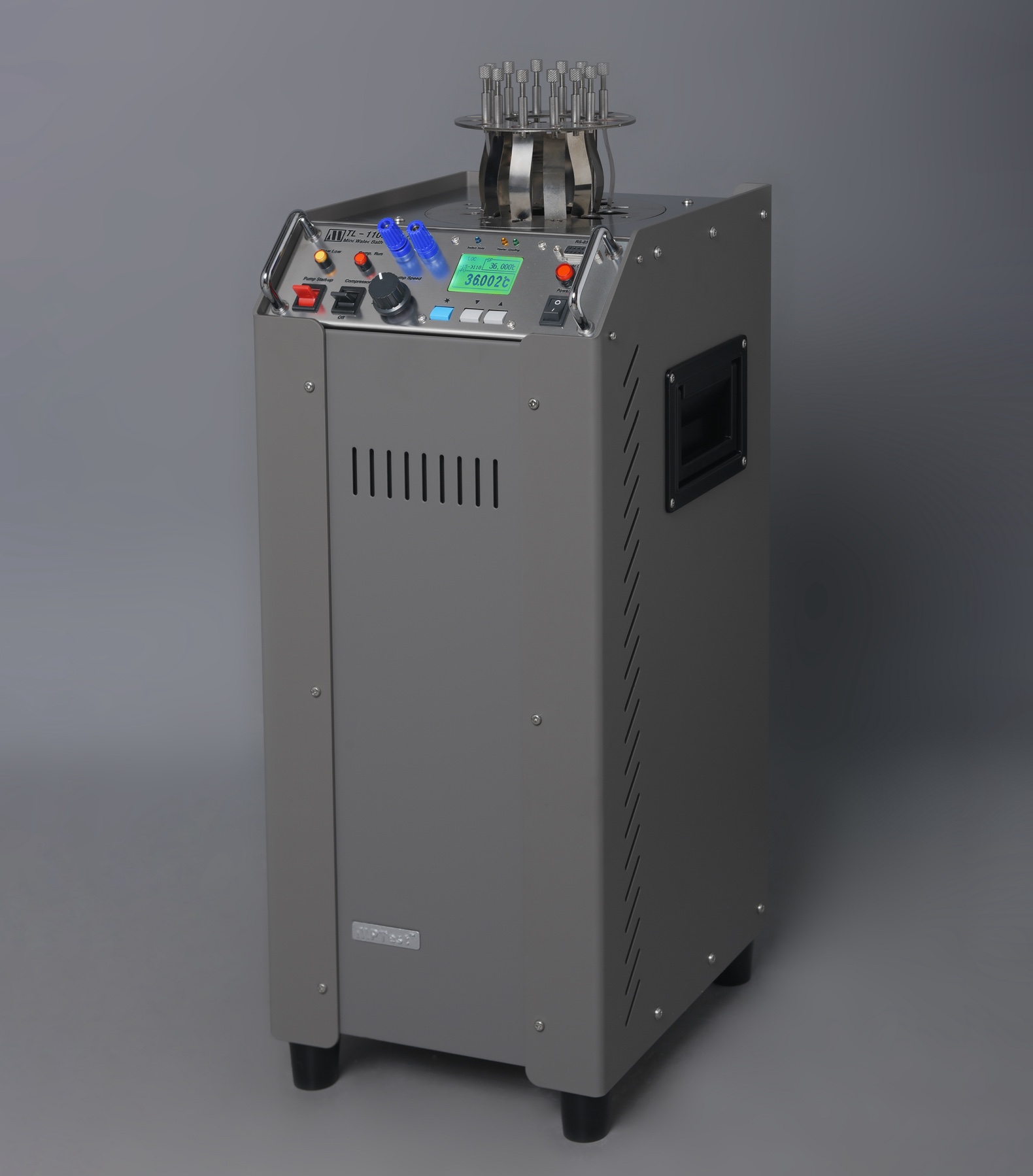

This is a more compactly designed constant temperature bath, weighing approximately 19.5 kg (43 lbs), with a temperature range of -10°C (14°F) to 102°C (215.6°F). It is recommended to use antifreeze for operation. The bath features an inner diameter of 138 mm (5.43 inches) and a depth of 265 mm (10.43 inches), achieving a temperature stability of ±0.003°C per 10 minutes. Designed for mobile metrology applications, it is lightweight enough for one person to easily transport and deploy at work sites. The bath utilizes MPtest's jet-stream mixing technology to achieve miniaturization while maintaining low vibration and quiet operation, making it particularly suitable for the calibration of short-stem thermometers. It also includes an instrument transport case that doubles as a temporary bench for field use.
Specifications
| Operating Temperature | Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F) |
| Working Area | Diameter 138mm (5.4"), Depth 265mm (10.4") |
| Wetted Parts | 304 stainless steel |
| Liquid Volume | Approximately 7 liters (1.85 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.003 ℃ /10min at 0 ℃ (32°F) ±0.005 ℃ /10min at 90 ℃ (194°F) |
| Temperature Uniformity | ±0.004 ℃ at 0 ℃ (32°F) ±0.010 ℃ at 90 ℃ (194°F) |
| Heating Time | 60 minutes from 25°C(77°F) to 90°C(194°F) |
| Cooling Time | 90 minutes from 25°C(77°F) to 0°C(32°F) |
| Operating Voltage | 110VAC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 800W |
| Dimensions | 228mm (9") x 258mm (10.2") x 520mm (20.5") |
| Net Weight | Approximately 19.5 kg (43 lb) |
