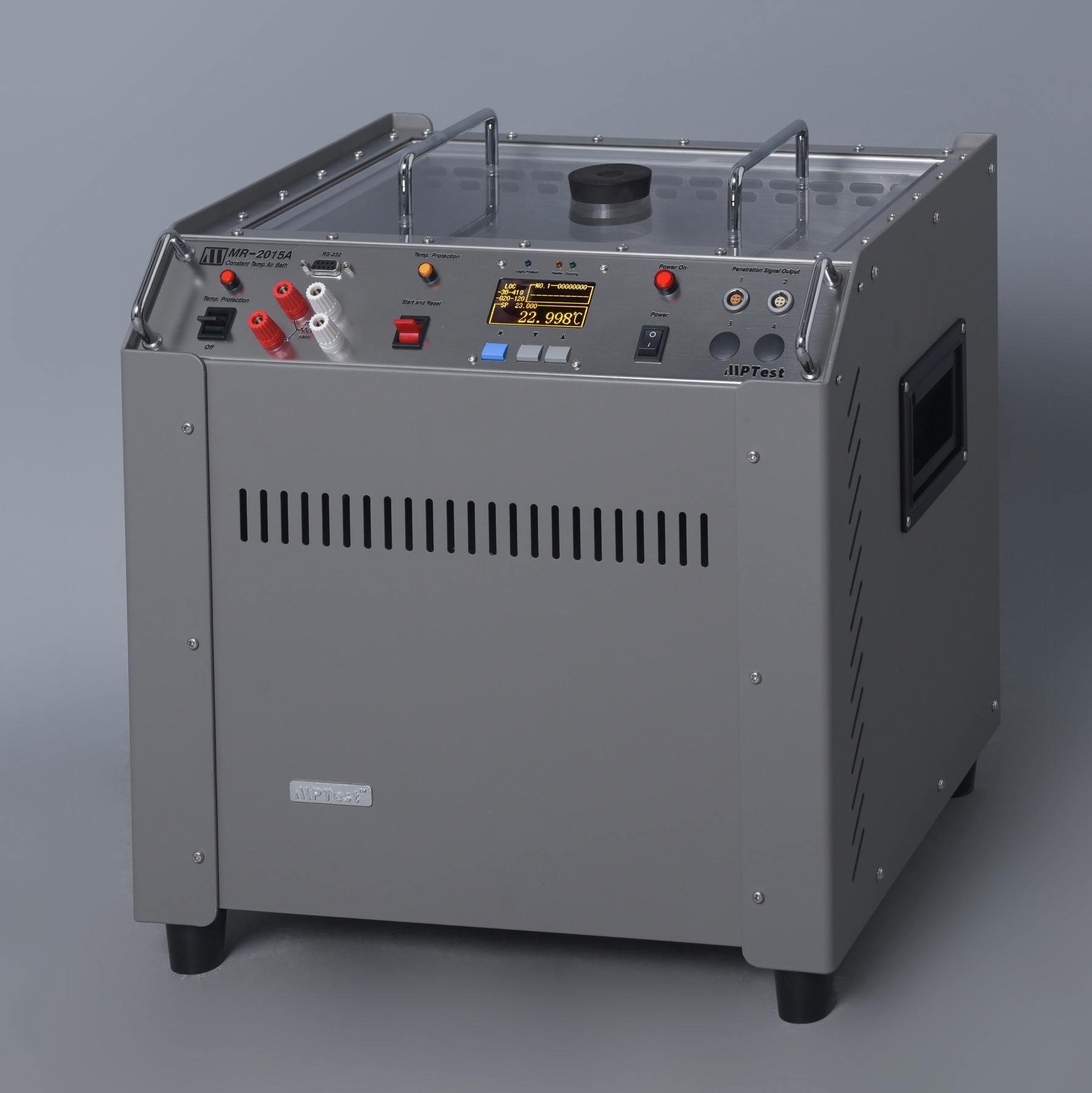

Bench-top Standard Resistor Air Thermostat Bath
The MR-2015A is a benchtop standard resistor air thermostat bath, specifically designed for standard resistors that cannot be immersed in oil-based constant-temperature environments. It employs semiconductor-based temperature control, offering a temperature range of 5 to 60 degrees Celsius with a temperature stability of ±0.005°C per 10 minutes. This instrument is suitable for determining the temperature coefficient of standard resistors and for prolonged constant-temperature applications.
Specifications
| Operating Temperature | Air: 5 ℃ to 50 ℃ (41°F to 122°F) at 23 ℃ (73.4°F) |
| Working Area | Length 315mm (12.4"), Width 170mm (6.7"), Depth 215mm (8.5") |
| Wetted Parts | 304 stainless steel |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.005 ℃ /10min at 23 ℃ (73.4°F) |
| Temperature Uniformity | ±0.15 ℃ at 23 ℃ (73.4°F) |
| Heating Time | 20 minutes from 20°C(68°F) to 30°C(86°F) |
| Cooling Time | 18 minutes from 30°C(86°F) to 20°C(68°F) |
| Operating Voltage | 110V AC ±10%, 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 280W |
| Dimensions | 450mm (17.7") x 350mm (13.8") x 420mm (16.5") |
| Net Weight | Approximately 23 kg (50.7 lb) |
