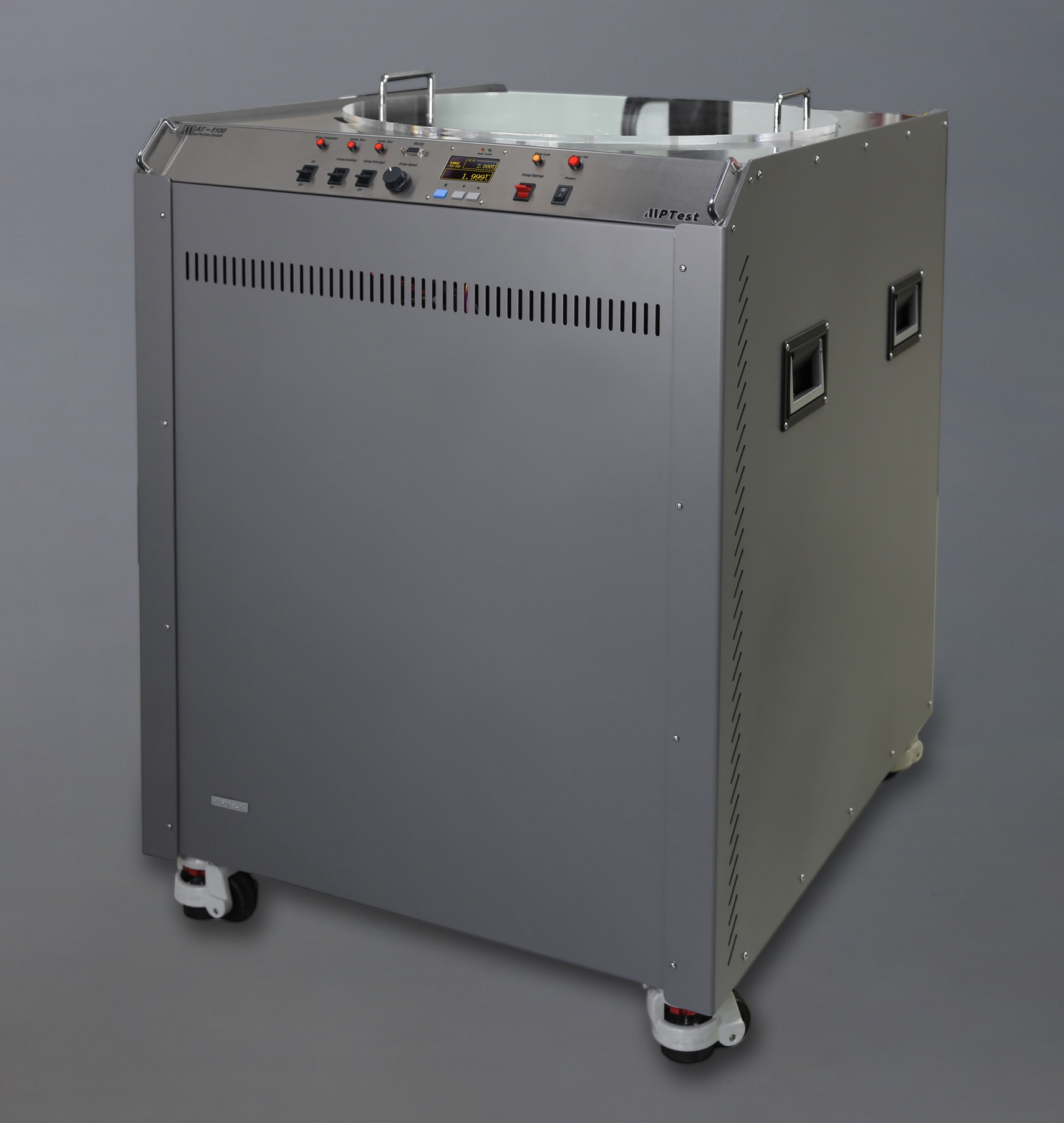

Precise Seawater Bath
The AT-5100 is specifically designed for the calibration and value transfer of ocean environment sensors. Its titanium alloy bath uses seawater as the working medium, featuring a workspace diameter of 550 mm (21.65 inches) and a depth of 380 mm (14.96 inches). Equipped with an integrated thermostat to mitigate ambient temperature effects, combined with MPtest's jet-stream agitation technology and a high-precision temperature control system, it achieves a stability of ±0.0005°C at 2°C. The system incorporates MPTest's proprietary rapid-cooling technology, enabling swift temperature reduction. It is ideal for ocean sensor manufacturers requiring batch calibration of multiple probes simultaneously, as well as for R&D departments demanding ultra-stable conditions for technical development.
Specifications
| Operating Temperature | Seawater: -1.5 ℃ to 50 ℃ (29.3°F to 122°F) Seawater Salinization: -5 ℃ to 50 ℃ (23°F to 122°F) |
| Working Area | Diameter 550mm (21.6"), Depth 360mm (14.2") |
| Wetted Parts | Titanium Alloy |
| Liquid Volume | Approximately 100 liters (26.42 gal) |
| Stirring Method | Jet stirring, three-speed adjustable |
| Temperature Control Method | Fully digital PID control |
| Display Resolution | 0.001 ℃ |
| Temperature Stability | ±0.0005 ℃ /10min at 2 ℃ (35.6°F) ±0.001 ℃ /10min at 35 ℃ (95°F) |
| Temperature Uniformity | ±0.001 ℃ at 2 ℃ (35.6°F) ±0.002 ℃ at 35 ℃ (95°F) |
| Heating Time | 60 minutes from 25°C(77°F) to 40°C(104°F) |
| Cooling Time | 120 minutes from 25°C(77°F) to 5°C(41°F) |
| Operating Voltage | 220VAC±10% , 60Hz (Customizable Technical Specifications) |
| Rated Power | Approximately 4500W |
| Dimensions | 676mm (26.6") x 740mm (29.1") x 892mm (35.1") |
| Net Weight | Approximately 120 kg (264.6 lb) |
